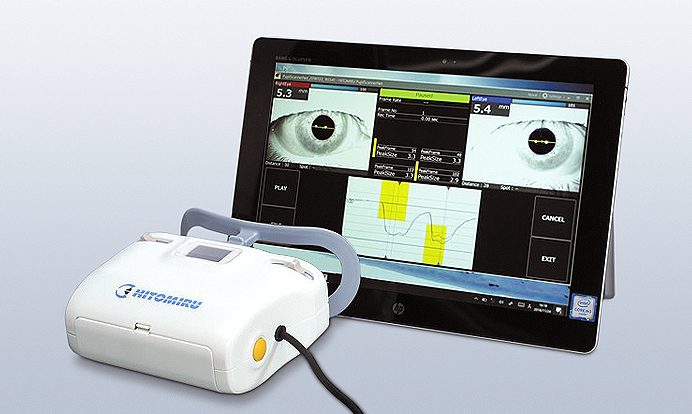

Hitomiru is a pupil diameter measurement instrument. It is portable and measures both right and left eye at the same time. It is used in reseach fields and hospitals.

Software "Pupil Scanner"

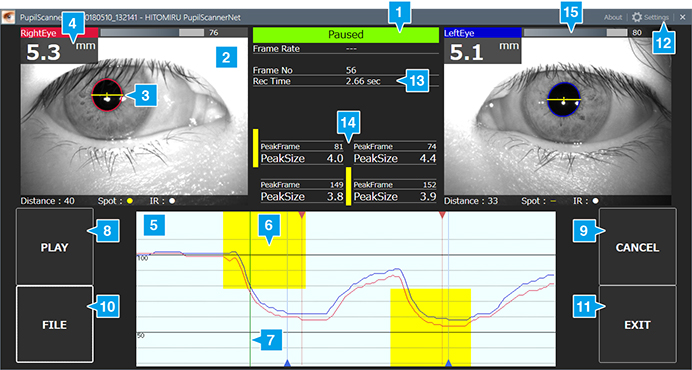

Explanation of pupil scanner

1	Status	Shows application status
2	Preview	Shows picture of camera view
3	Pupil ring	Shows border of pupil
4	Result	Shows pupil diameter in mm
5	Graph	Show graph time vs pupil diameter in percentage
6	Exposure time	Shows the time during the light is exposed
7	Preview line	Shows the playback position of the preview picture
8	PLAY	Start and stop the measurement
9	CANCEL	Stop the measurement
10	FILE	Choose the recorded data for loading
11	EXIT	Exit the software
12	Setting	Change the operating setting
13	Rec. time	Shows the playback position
14	Peak size	Show the minimum pupil diameter
15	Pupil shrinking percentage	Shows pupil shrinking percentage

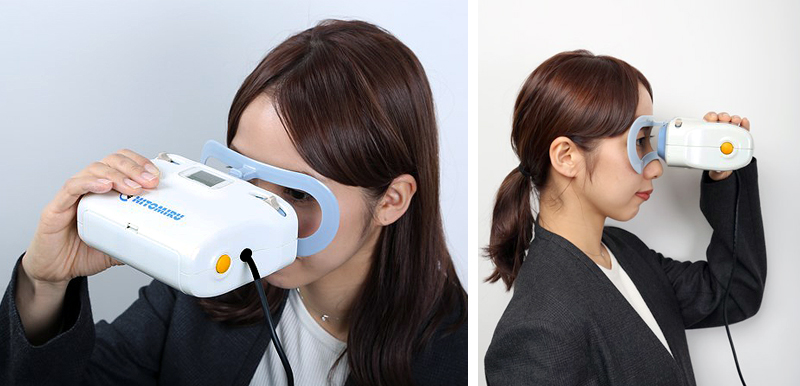

Picture of Hitomiru 003

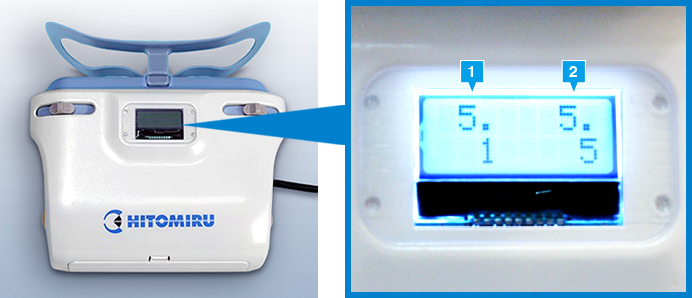

Explanation of Main body

1	Pupil diameter of right eye	Shows right pupil diameter in mm
2	Pupil diameter of left eye	Shows left pupil diameter in mm

Main specification

Measurement	Output: Video of pupils during measurement, Maximum pupil diameter, Minimum pupil diameter, Pupil diameter of each frames during measurement
Power supply	6V (4 AA Batteries)
Dimension	Width: 6.5 in, Length: 4.8 in, Height: 2.7 in
Weight	477 g (without battery)
Lighting	Infra-red (860 nm)
Stimulus light	White light
Redcording resolution	640 × 480
Video	20fps

Operating environment and Specification

Computer OS: More than Windows 7
Main Memory: More than 1GB
Display: More than 1280×768
USB interface: USB 3.0

Content

1.Pupil measuring instrument

2.4 AA Batteries

3.Hitomiru software

4.PC

Please contact throungh contact form if you have any question.
